Dive into the world of our grandMA3 compact range and get a detailed overview of the variety within the grandMA3 system. Have a look at the facts and figures and go down to the compact battle to see which console best suits your needs.
Compact flexibility for every stage
Do you need a console with a small form factor, but no compromises in features and flexibility? Are you working in a small venue, a television studio or house of worship and you need a powerful lighting control? Or do you need a lightweight model which is easy to transport? Then the grandMA3 compact consoles are the best choice for you.

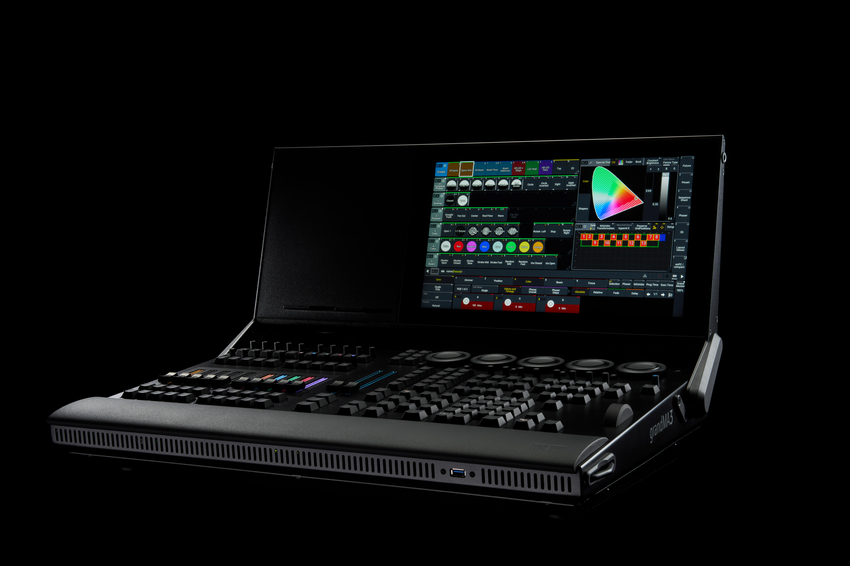

grandMA3 compact
With the grandMA3 compact you get the smallest form factor in the grandMA3 control range, with the full grandMA3 system benefits. This console provides a travel-ready size with one screen and all connections directly on board. It´s ideal for club tours, small TV studios or architectural lighting jobs.

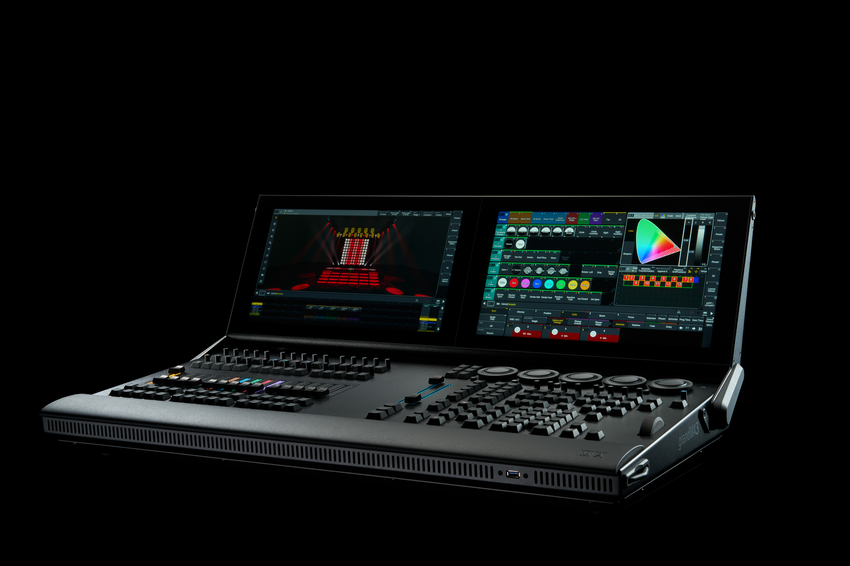

grandMA3 compact XT
The grandMA3 compact XT is the larger of the two compact models. You get two big screens for your personal views and a powerful section with 60 physical playbacks. You can find it on small and mid-sized festivals, theatres, houses of worship and cruise lines.
Flexible. Portable. Scalable.
The system size is scalable to 250 000 parameters with the use of additional grandMA3 processing units. Both models, offering the full system benefits of the grandMA3 system, housed in a compact and lightweight format. Easy to transport, the compact models are ideal for operators, programmers, and also the console of choice for tech-desk duties. Wherever you go, the grandMA3 compact series delivers the freedom to create stunning looks without compromise.
Flexible
Portable
Scalable
At it's core:
Want to know which console is the right fit for you? Dive into the video and discover the key differences between the grandMA3 compact and grandMA3 compact XT. From features and performance – get a clear, in-depth look at what sets these two models apart. Whether you’re looking for ultimate portability or extra power for larger setups, this video will help you make the right choice for your next project.
The compact battle:
| Specs | grandMA3 compact | grandMA3 compact XT |
| DMX outputs/ DMX inputs | 6 DMX outputs, 1 DMX input | 6 DMX outputs, 1 DMX input |
| Parameters | 8 192 | 8 192 |
| Internal foldable monitor multi-touch screen | 1 | 2 |
| Rotary RGB backlit encoder | 29 | 39 |
| Dual encoders | 5 | 5 |
| Backlit motorized 60 mm faders | 10 | 15 |
| Separate playbacks | 40 | 60 |
| Assignable x-keys | 16 | 16 |
| USB connectors | 5 | 5 |
| Dimensions | 661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in (width x depth x height, unfolded) | 661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in (width x depth x height, unfolded) |
| Net weight | 16 kg / 36 lbs | 20 kg / 45 lbs |
Compact stories from the road

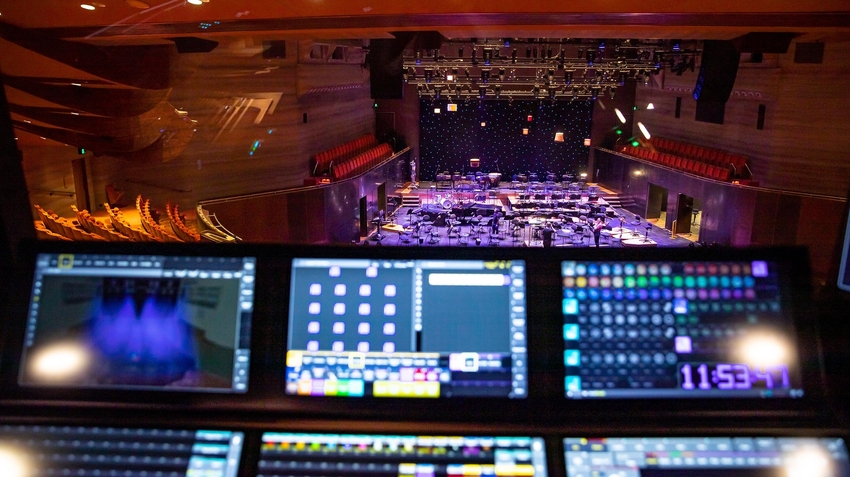

Theatre
"We thought it was the right tool for the job and the best choice for the venue."
Architainment

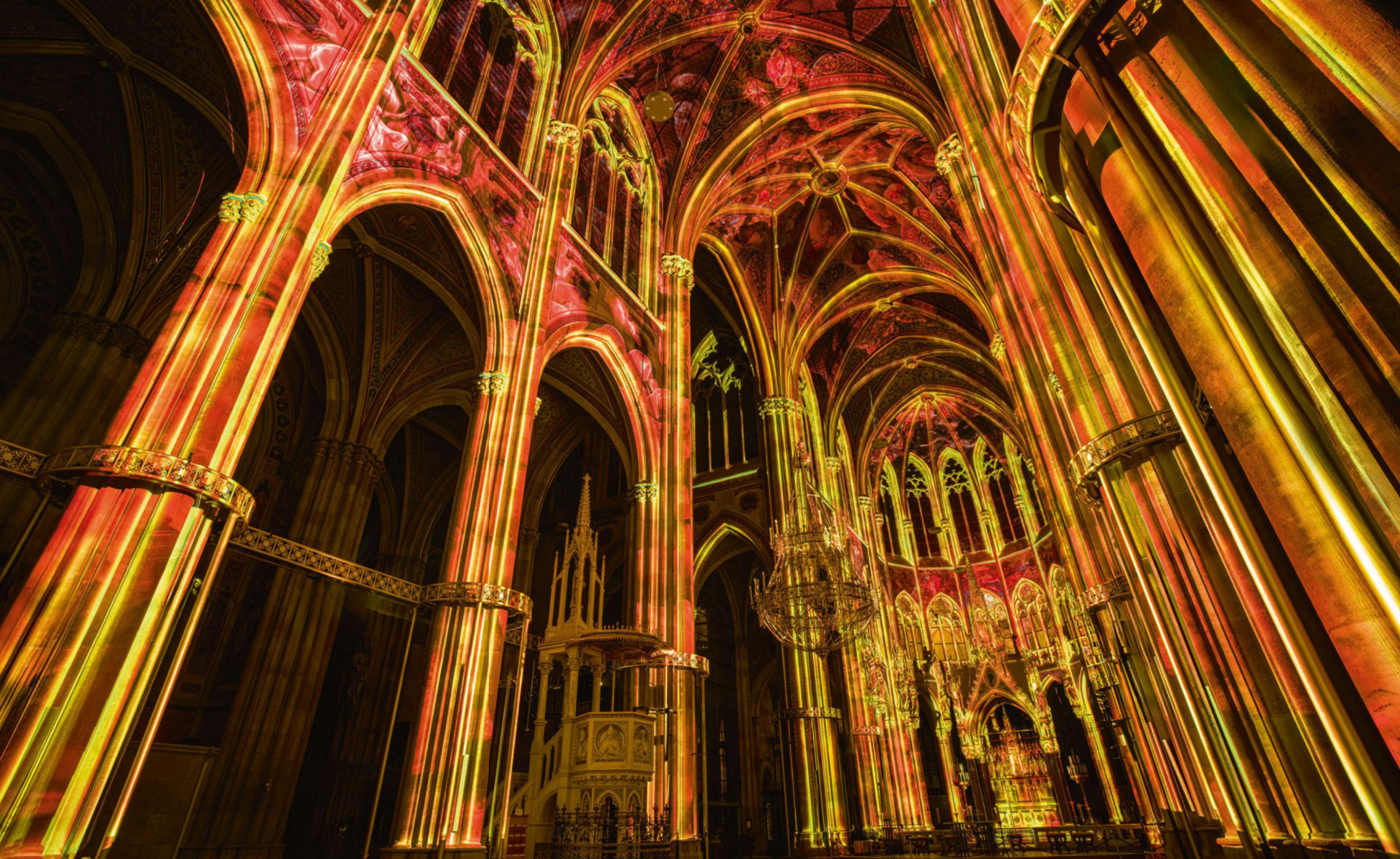

Votivkirche, Vienna
"We thought it was the right tool for the job and the best choice for the venue."
Corporate Events
"We thought it was the right tool for the job and the best choice for the venue."

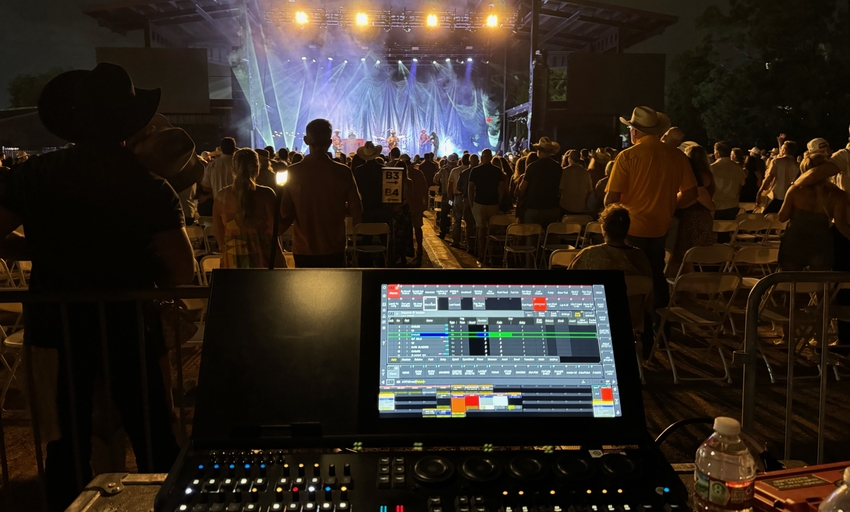

Concert Touring
"We thought it was the right tool for the job and the best choice for the venue."
Houses of Worship
"We thought it was the right tool for the job and the best choice for the venue."
Theatre
"We thought it was the right tool for the job and the best choice for the venue."
MA Tips Special
Screen configurations
Moving views between a compact XT and a grandMA3 full-size
Where to get your new grandMA3 console?
Contact your local distributor to get more information about the products.
You want to learn more?
MA Tips
On a regular base we bring you bite-sized tips and tricks videos that give you a closer look at features and functions within our software. Do you want to create a new effect, learn about amazing workflows or get deeper into specific commands?
