grandMA3 onPC command wing XT

Most versatile lighting control

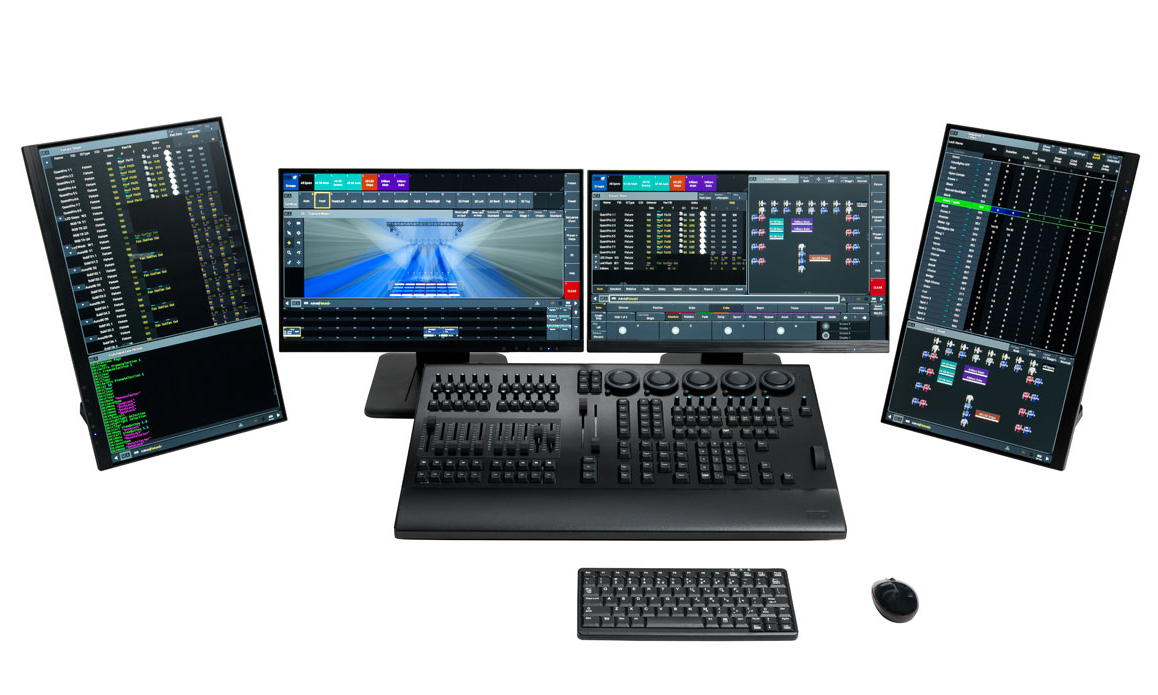

MA Lighting launches a new member of its grandMA3 onPC solutions range: the grandMA3 onPC command wing XT. It is the grandMA3 onPC console solution. With the grandMA3 onPC software pre-installed on a built-in MA motherboard, the grandMA3 onPC command wing XT offers 4,096 parameters – just add one to four touchscreen monitors, and it´s ready to go!

grandMA3 onPC command wing XT is an extremely versatile solution for smaller and mid-sized installations and shows, streaming studios as well as a powerful preprogramming and backup tool on the road. It is built to the same highest standards of quality in software and hardware that are applied to the entire grandMA3 product range ensuring that users will benefit from this MA DNA. grandMA3 onPC command wing XT is the perfect option for new MA users as well as MA veterans.

As a member of the grandMA3 family the grandMA3 onPC command wing XT uses the same user interface as the other grandMA3 consoles. It therefore allows new users to learn the MA user interface from start and later seamlessly switch between this solution and other grandMA3 consoles. Furthermore, newcomers will benefit from the amount of free trainings and webinars MA offers which allows them to quickly build up their skills.

Experienced MA users can keep their proven workflow and rely on this solution wherever it is physically difficult to use a full-grown grandMA3 console. The grandMA3 onPC command wing XT enables them to seamlessly program, playback or backup within the grandMA3 world. Of course, 24/7 worldwide MA support is ensured for the grandMA3 onPC command wing XT as well.

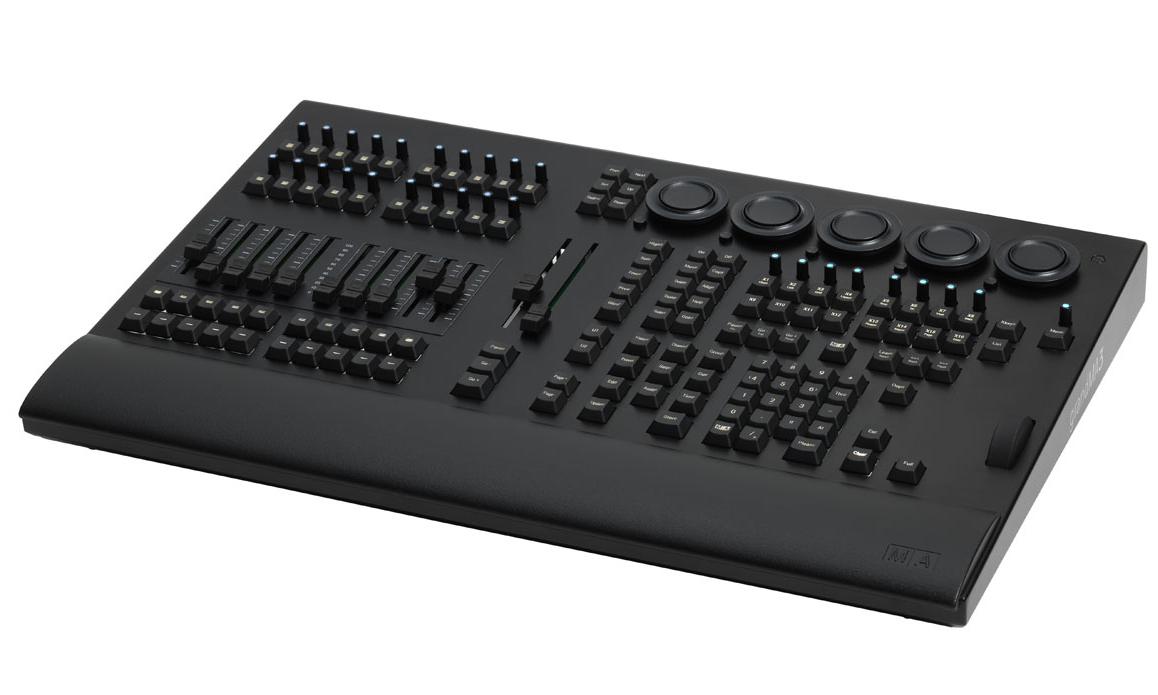

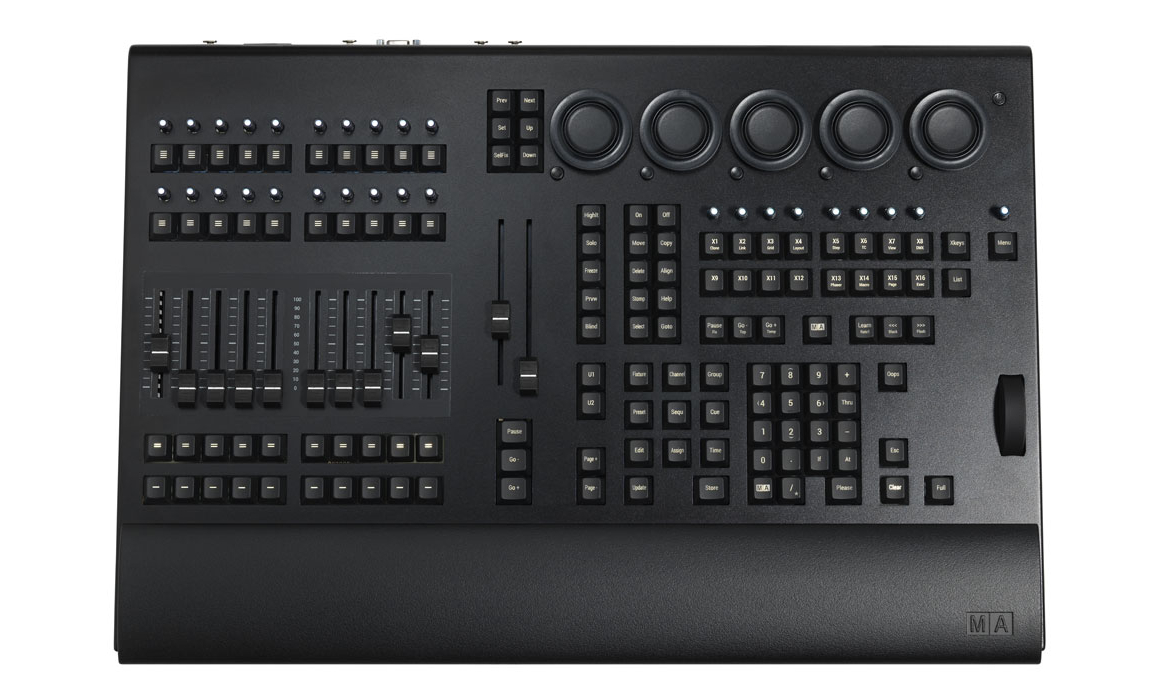

With 10 motorized faders, 40 physical playbacks, 16 assignable x-keys and a dedicated master playback section the grandMA3 onPC command wing XT provides plenty of playback options.

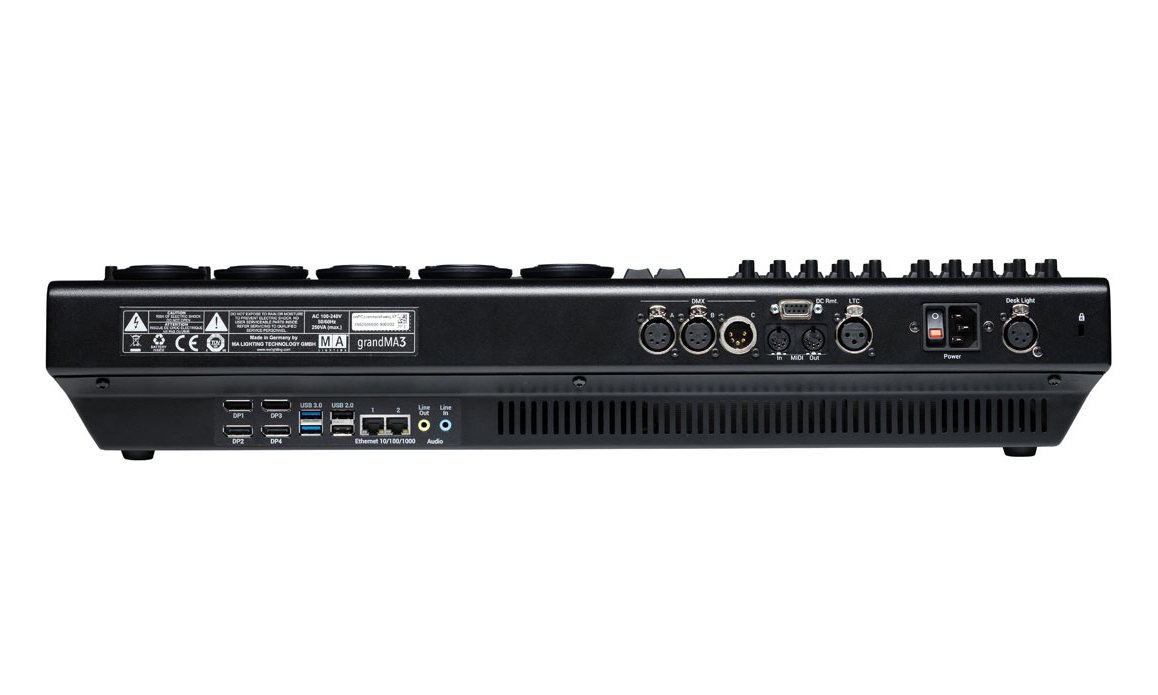

Thanks to the grandMA3 onPC command wing XT incorporating the command section of the grandMA3 consoles, it has never been easier to use the grandMA3 onPC software. All inputs and outputs of a grandMA3 console are available to the user. DMX, Midi, Ethernet, Timecode and Remote Control are all on hand directly with the grandMA3 onPC command wing XT. Additionally, it has four individual monitor outputs allowing users to tailor it to suit their needs best.

The grandMA3 onPC command wing XT provides the maximum number of parameters available for grandMA3 onPC solutions: 4,096 parameters with 2 DMX outputs and 2 x Ethernet Gigabit connectors included for DMX over Ethernet protocols. A total of 1,024 DMX universes can be assigned to any of the physical DMX outputs or transmitted via MA-Net, sACN or Art-Net.

There are three choices for onPC solutions: the grandMA3 onPC command wing XT, which is the ultimate grandMA3 onPC console solution, the grandMA3 onPC command wing, which offers the ultimate grandMA3 mobile solution, and the grandMA3 onPC xPort Nodes, which offer the most cost-effective DMX output solution for software only show control.
