dot2 core

MA Lighting

Art.No.: 120211

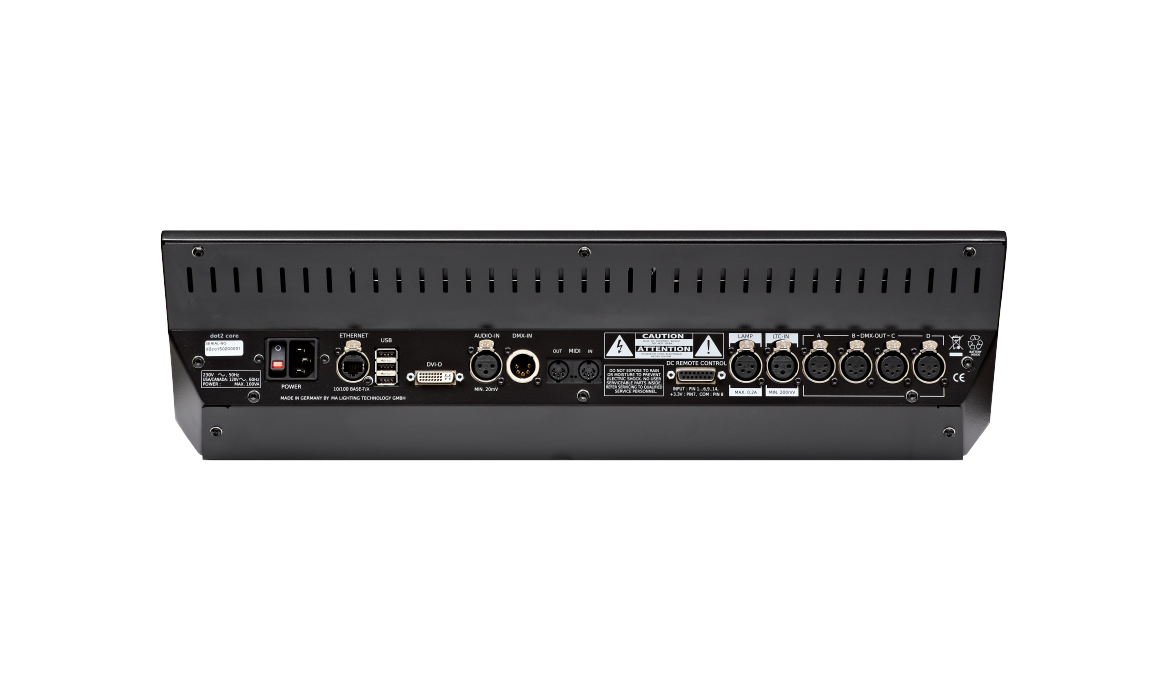

rearside of dot2 core

The dot2 core is a compact lighting console designed for small to medium sized productions up to 4,096 control channels.

Intuitive operation is the core of the dot2 philosophy and with a comprehensive set of connectivity hardware on all console models, the dot2 range is suitable for most theatre, touring, corporate, television and education lighting environments. The easy to operate dot2 software is available in multiple languages and provides onboard Help and Direct Hints to guide a new user to operate the console to its full potential. Simply Patch and Go, with no additional setup required. A full range of clever programming and playback features provide intuitive access to advanced functionality. Access to generic fixture functions is via a Smart Dialogue and Store Look functionality ensures you can control and record what’s intended. Automated tools; Track & Shield and Auto-Unblock simplify cue-list management and Auto-Fix allows playback page changes to occur without unexpected results. The dot2 will feel familiar to theatrical users, 100mm faders provide full access to the master playback list at all times and a tactile level wheel gives access to lighting levels. Command-line syntax is fully supported alongside graphically assisted touch screen control of all features. Build for touring; the dot2 hardware is compact, durable and remarkably lightweight. Its optional modular plug & play F-wings and B-wings allow playback expansion and the full-tracking-back-up functionality ensures your show runs trouble free. Live Time, Tap Sync and multiple touch screens allow instant access to all playback functionality. And sophisticated features like Soft-LTP automatically preserve key-lighting levels without going through black.

The dot2 core is the heart of the dot2 range and includes the full programming section, master playback section, 6 fader playbacks and 12 individual playback buttons. Two built in touch screens and support for one external touch screen ensure the dot2 core has the flexible hardware required for almost any kind of show.


  • MA DNA

Technical Specifications

Operating voltage/ Supply voltage120/230V, 50/60Hz (automatic detection)
Dimensions427 x 546 x 161mm / 16.8 x 21.5 x 6.4 inch
Net weight7.0kg / 15.4lbs
Output connectors4 x XLR 5pin (DMX)
3 x USB
1x DVI-D
1 x DIN (MIDI)
1 x XLR 4pin (desk lamp)
Input connectors1 x etherCON (dot2-Net, sACN, Artnet)
1 x XLR 5pin (DMX)
1 x XLR 3pin (SMPTE)
1 x DIN (MIDI)
1 x Sub-D 15pol (Analogue Remote)
1 x IEC 60320 C13/C14 (IEC cord)
